Welded Gabion Box

Easy to install

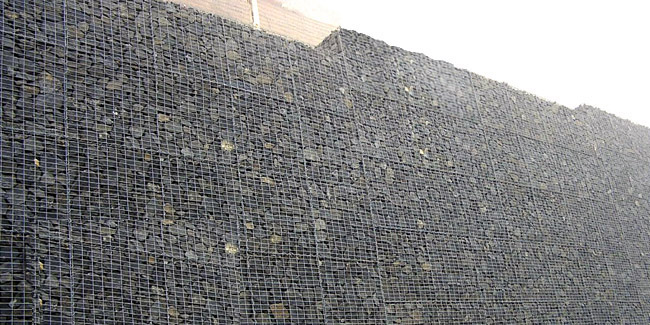

 Field installation is quick and easy. In fact, installation time can be as much as 40% less than required by hex type Gabions. With diaphragms and stiffeners installed,the Gabion may be filled with standard loading equipment.After filling the Gabion, a lid is placed on top and secured with spiral binders,lacing wire or “C” rings.

 Unlike hexagonal units, Top welded wire Gabion hold their shape better – they don’t bulge out when filled .They are easy to handle,which means more work,less labor and highter productivity an the job.

 Top Welded wire Gabion are made by one of the nation’s leading manufacturers of welded wire mesh. Each Gabion is constructed of rugged hight tensile wire which is coated with a thick, cor-rosion-resistant layer of zinc. The wire is also available with a tough,durable PVC coating. The jality materials results in a longer,Gabion life. Top welded wire supplied from stock in a complete Custom sizes to fit unique site con-ailable on special order.

Coating Properyt
Test Method
Value
Tensile Strength
ASTM D638
2275Min
Elongation
ASTM D638
290% No Break
Hardness
ASTMD2240
75Min Shore A
Salt Sproy
ASTM B 117
3000hrs.no effect
Exposure to
Ultraviolet Light
ASTM 1499
ASTMG23
3000hrs
Galvanized Coating

 ASTM A 90 Standard Tedst Method for Weight of Coating on Zinc-Coated(Galvanized) lron or Steel Articles ASTM A 641” Standard Specifications for Zinc- Coated (Galvanized ) Carbon Steel Wire ,Top mesh exceeds Class 3 zinc coating weights.

Welded Wire

 ASTM A 185 “Standard Specifications for Steel Welded Wire Fabric ,Plain for Concrete Reinforcement ASTM A370 Standard Test Methods and Definitions for Mechanical Testing of Steel Products.

sizes of Gabion
amount of diaph ragm
Standard of Gabion
spiral spindle
L*W*H
300* 100
300* 50
200* 100
200* 50
150* 100
150* 50
100* 100
100* 50
50* 50
150
100
50
300 x 100 x100
0
4

2

8
8

2
4

4

8
16
4
300 x 100 x50
0
2
2

2

8
4
4
2
2
2

4

8
8
8
300 x 50 x100
0
2
2

2

8
4
4
2
2
2

4

8
8
8
300 x 50 x50
0

4

2
8

16
2

4

4
8

8
200 x 100 x100
0

4

2

16

1

4

3

20

200 x 100 x50
0

2
2

2

12
4
1

2
2

3

14
6
