Heavy Type Hexagonal Mesh
 |
 |
 |
Heavy hexagonal mesh, also called big type hexagonal mesh. Enjoys wide applications. Heavy type hexagonal wire mesh can be made into Gabion boxes used in control and guide of water or flood, flood bank or guiding bank, proventing of rock breaking, water and soil protection, bridge protection, strengthening structure of soil, protection engineering of seaside area, seaport engineering, isolation walls, protection of road, etc.
Galvanized Hexagonal Wire Mesh Heavy Type: Made with high quality low-carbon steel wire to weave, steel wire tensile strength is 38kg/M2. The wire diameter may reach 2.0mm-4.0mm. The steel wire is usually galvanized. And the galvanizing layer thickness can be made according to the customer request. Max. galvanizing quantity can be 300g/M2.
PVC Coated Hexagonal Wire Mesh Heavy Type: PVC coated hexagonal Mesh is made of pvc coated wire that offers longer service life and better anticorrosion property.
Heavy hexagonal mesh |
|||
Mesh Opening (MM) |
Iron Wire Diameter (MM) |
(PVC Wire)/ Inside diameter/Outer diameter(MM) |
Roll Width (M) |
60X80 |
2.0-2.8 |
2.0/3.0-2.5/3.5 |
4.3 |
80X100 |
2.0-3.2 |
2.0/3.0-2.8/3.8 |
4.3 |
80X120 |
2.0-3.2 |
2.0/3.0-2.8/3.8 |
4.3 |
100X120 |
2.0-3.4 |
2.0/3.0-2.8/3.8 |
4.3 |
100X150 |
2.0-3.4 |
2.0/3.0-2.8/3.8 |
4.3 |
120X150 |
2.0-4.0 |
2.0/3.0-3.0/4.0 |
4.3 |

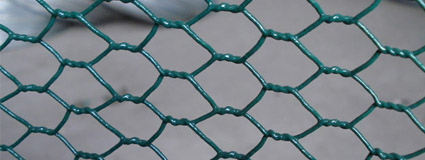

Hexagonal Mesh (Hexagonal Wire Netting)
Wire netting with hexagonal opening offers good ventilation and fencing uses. Hexagonal wire netting is made of twisting carbon steel wire, electro or hot dipped galvanized, then plastic coated, or plain.
It can be fabricated into Gabions boxes – one of the most popular wire products for flood control. Then stones are put into it. Laying of Gabions make a wall or bank against water and flood. Hexagonal wire netting is also welded into poultry netting for breeding of chicken and other poultry. Popularly used as fences after green coated, and costs can be reduced. In the past years, the hexagonal wire netting made of galvanized iron wire has been used in fences, breeding and construction reinforcement.
According to the application, we can supply wire netting in the following types:
• General Purpose Wire Netting;• Heavy Type Wire Netting;
• Poultry Netting;
• Chicken Wire;
• Wire Netting for Fences.
Hexagonal opening woven wire netting is mostly used as light fencing for poultry, farms, for birds, rabbits and pet enclosures, tree guards and garden fencing, storage bins and decorative supports tennis courts. It is also used as wire mesh fabrics for light reinforcement in splinter proof glass and cement concrete, plastering and laying of roads, etc.
Processing Types available include:
• straight twist hexagonal wire netting
• reverse twist hexagonal wire netting
• double-direction twisted hexagonal wire netting
Finishes of Hexagonal Wire Netting can be:
• galvanized after weaving, galvanized before weaving
• PVC coated galvanized
• hot-dipped galvanized
• electro galvanized
 |
 |
General Specification of Hexagonal Wire Netting
Mesh |
Wire dia |
Mesh Width |
|
|
BWG |
mm |
Meter |
3/8" |
27-23 |
0.41-0.64 |
width limit:2M,single or double edge |
1/2" |
27-22 |
0.41-0.71 |
width limit:2M,single or double edge |
5/8" |
27-22 |
0.41-0.71 |
width limit:1.22M,single or double edge |
3/4" |
26-20 |
0.46-0.89 |
width limit:2M,single or double or strong edge |
1" |
25-19 |
0.51-1.07 |
width limit:2M,straight or reversed twist |
1-1/4" |
24-18 |
0.56-1.24 |
width limit:2M,straight or reversed twist |
1-1/2" |
23-16 |
0.64-1.65 |
width limit:2M |
2" |
22-14 |
0.71-2.11 |
width limit:2M |
3" |
21-15 |
0.81-2.11 |
width limit:2M |
